Scientific Solutions ® Inc.

LabMaster ® Advanced Design (AD) product


Please Note: The LabMaster AD has been redesigned using higher resolution 16 bit Analog Circuitry.  This new replacement product is called the LabMaster ADEX (ADEX for Advanced Design EXtended) and is 100% hardware / software compatible with the LabMaster AD PGH.  It even uses the same 60 pin connector, so your existing external connections can remain the same, yet the LabMaster ADEX is much smaller physically than the LabMaster AD.  This page is to help and provide information to current users of the LabMaster AD.

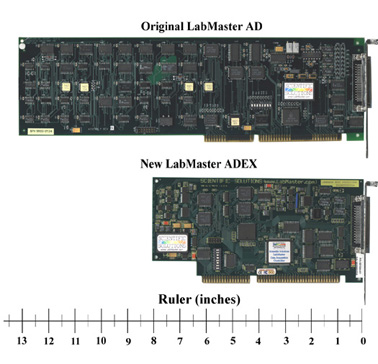

LabMaster AD vs. LabMaster ADEX

The LabMaster Advanced Design (AD) combines the features of several high-performance products into a single PC card. With a full range of features such as Analog Input, Analog Output, Digital I/O and Precision Timer/Counters - the LabMaster AD provides the functionality required for a wide range of test and measurement applications.  Great care is taken in the design and manufacturing of the LabMaster AD to insure a quality product that provides accuracy and stability for demanding applications. Its unique features, rugged design and reliability make it ideal for acquiring and analyzing data in industrial, scientific, and educational fields.

The LabMaster AD features high speed analog-to-digital conversion, sample FIFO buffering, coordinated simultaneous ADC and DAC capabilities, programmable gain amplifiers, high speed counters/timers and digital I/O on a single card. The product comes complete with the Lab Master AD card, cabling, screw termination board, and Lab Master AD software toolkit.

Additional Features:
On-board sample memory, Auto-sequence Channel Array Table; DeskTop BNC, screw terminals, header and DB connection units.
Suggested Uses:
Ultra-low Noise acquisitions for medical EEG/EKG, sleep labs, sensor measurements, or  product development and testing.  High channel count (up to 64 Analog Inputs) and versatile expandability to meet your particular requirements.
Software Support:
32-bit kernel-mode Win Device Drivers and function library.


LabMaster AD Products


Part
Number
Product Overview
More Information
(old)
813537

(new)
813675
LabMaster AD vs. ADEX
LabMaster AD PGH with 60 pin connector



Purchase the LabMaster ADEX as a direct replacement

The LabMaster AD PGH and the LabMaster ADEX both have the same software programmable gains of 1, 2, 4, 8.
Full Description and Specifications

(old)
813536

(new)
N/A

LabMaster AD PGL with 60 pin connector

The only difference between the PGL and the PGH versions of the card, are the software programmable gains:

PGH: 1, 2, 4, 8
PGL: 1, 10, 100, 1000

We have found that most LabMaster AD PGL users are not using the programmable gain option, and hence could just as well use the PGH version of the card.

Sometimes third party resellers would purchase either card as their application program could automatically account for the difference, or because the software gain options were not being used.

If you need a replacement for a LabMaster AD PGL, then we suggest you consider the LabMaster ADEX.  Note that the ADEX will look like a LabMaster AD PGH to your application (with gains of 1, 2, 4, 8)




LabMaster AD Accessories


Part
Number
Product Overview
More Information
813510

DeskTop BNC Photo
DeskTop BNC PRO with 60pin connector
  • Provides Convenient BNC connections
  • Small footprint DeskTop Unit
    • 11" W x 4" H x 7" D (280mm x 102mm x 178mm)
  • Connections for 64 Analog Input Signals
Full Description and Specifications
813555


LabMaster SM64 Photo
LabMaster SM64 Analog Input Unit with 60pin connector
  • Provides Convenient DB25 Analog Input connections
  • Small unit only 11" wide x 2" tall x 7" deep
  • Popular for Sleep Lab applications
Full Description and Specifications
813565


LabMaster DC8 Photo
LabMaster DC8 Analog Input Unit
  • Provides Convenient 3.5mm Analog Input connections
  • Un-used inputs are automatically Grounded
  • Small unit only 4" wide x 2" tall x 5" deep
  • Connects to DeskTop BNC, SM64, LabRack BNC units
  • Popular with Sleep Lab Applications
Full Description and Specifications
813566


LabMaster DC16 Photo
LabMaster DC16 Analog Input Unit
  • Provides Convenient 3.5mm Analog Input connections
  • Un-used inputs are automatically Grounded
  • Small unit only 4" wide x 2" tall x 5" deep
  • Connects to DeskTop BNC, SM64, LabRack BNC units
  • Popular with Sleep Lab Applications
Full Description and Specifications
813572

LabMaster DeskTop AIDIO 6416
  • DeskTop unit supports 64 Analog Inputs and 16 Digital I/O signals
  • Two DB37 Analog Input Connections on the front
    • Analog Input Channels 0 to 31, and Channels 32 to 63
  • Four BNC Connections on the front
    • Analog Input Channels 0 to 3
  • One DB25 Digital I/O Connection on the front
    • 8 bits Digital IN and 8 bits Digital OUT
  • Connects to LabMaster PRO with 60 pin cable

813540

LabMaster DeskTop Screw Termination
with 16 Analog Inputs
  • Provides Convenient screw terminals for signals
    • 16 Analog Input, 2 Analog Output
    • 8 Digital Input, 8 Digital Output, 8 Expansion
    • Counter / Timer Signals
  • Housed in small DeskTop unit
    • Small unit only 11" wide x 2" tall x 7" deep
Full Description and Specifications
813570

LabMaster Screw Terminal Photo
LabMaster Desktop Screw Termination
with 64 Analog Inputs
  • Provides Convenient screw terminals for signals
    • 64 Analog Input, 2 Analog Output
    • 8 Digital Input, 8 Digital Output, 8 Expansion
    • Counter /Timer
  • Housed in small DeskTop unit
    • Small unit only 11" wide x 2" tall x 7" deep
Full Description and Specifications
813525

DeskTop ST-BNC 20
LabMaster ST-BNC 20 Unit
  • DeskTop Unit with 20 BNC signal connections
    • User can wire the BNC to the desired signals
  • Each BNC has two internal wires
    • Easy to connect to the internal screw terminal
    • Versatility to change the BNC signal connections at any time
  • Comes with labels you can apply to the BNC panel
    • Identifies the connections you make
  • Connects to the LabMaster thru the 60 pin connection
  • Scientific Solutions can label, install and connect for you
Full Description and Specifications
821008

CDROM
Windows Device Driver
  • 32-bit kernel mode driver
  • WDM driver supports Win98, 2000, XP
  • Standard LabPac32 DLL function library included
Full Description and Specifications
0821012

CDROM
LabPac32 Software Application Development Toolkit
  • Software Development tools for creating your own application
  • Comes complete with Device Drivers for Scientific Solutions products
    • WDM Driver Supports Win98, 2000, XP
    • LabPac32 DLL as the API
  • Software Developer Example programs
    • Compiled EXE programs
    • Source Code
    • Header files
  • C# Compiler
    • Same compiler used to make examples
    • Open Source compiler
    • C# is an object oriented, well-structured and managed language
    • Easy to create graphical software
  • Includes MicroSoft dotNET Framework
    • Allows you to compile programs to run in Windows

942543
LabMaster AD 60pin cable
Cable, 60 pin high-density, 1.5 meter
  • For use with LabMaster cards using the 60pin connector
  • This cable is supplied with the 60pin version of the card and is available as a replacement for lost or damaged cables.
Full Description and Specifications
942544
LabMaster AD 60pin Cable
Cable, 60 pin high-density, 3.0 meter
  • For use with LabMaster cards using the 60pin connector
  • 1.5meter cable is supplied with the product.  This 3 meter cable is only recommended for special applications that require a longer cable - consult with technical support before using.
