Scientific Solutions ® Inc.

LabMaster ® ADEX product

LabMaster ADEX Photo

Scientific Solutions LabMaster ADEX card

The LabMaster ADEX provides true 16 bit 330Khz measurements on a single small ISA card!

The LabMaster Advanced Design Extended (ADEX) combines the features of several high-performance products into a single PC card. With a full range of features such as Analog Input, Analog Output, Digital I/O and Precision Timer/Counters - the LabMaster ADEX provides the functionality required for a wide range of test and measurement applications.

Great care is taken in the design and manufacturing of the LabMaster ADEX to insure a quality product that provides accuracy and stability for demanding applications. Its unique features, rugged design and reliability make it ideal for acquiring and analyzing data in industrial, scientific, and educational fields.

The LabMaster ADEX is a direct replacement for the LabMaster AD (PGH) with new features such as a smaller physical size and increased resolution A/D and D/A converters from 12-bit to 16-bit.

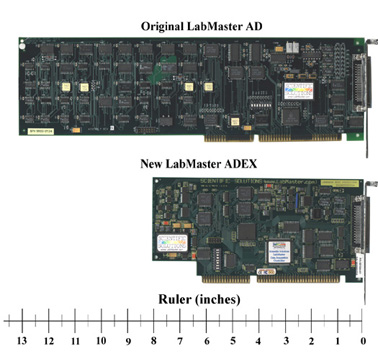

LabMaster ADEX versus LabMaster AD Photo

smaller LabMaster ADEX compared to larger LabMaster AD

Whether your applications are laboratory research, product development or production testing, the LabMaster ADEX is up to the task and should provide you with years of reliable and trusted service.

A variety of DeskTop units available for connecting to the LabMaster ADEX are also included on this product page. These DeskTop units provide a variety of connection options including Screw Terminals, BNC, D-sub, header connections, etc.

Suggested uses includes ultra-low Noise acquisitions for medical EEG/EKG, sleep labs, sensor measurements, or product development and testing. High channel count (up to 64 Analog Inputs) and versatile expandability to meet your particular requirements.

Software support includes a our Kernel-mode windows device drivers and our LabPac function library


LabMaster ADEX Product

LabMaster ADEX with 60 pin Connector
Image LabMaster ADEX Product Photo
Part Number 813675
Title LabMaster ADEX
Overview

The LabMaster Advanced Design Extended (ADEX) combines the features of several high-performance products into a single PC card for the ISA bus. With a full range of features such as Analog Input, Analog Output, Digital I/O and Precision Timer/Counters - the LabMaster ADEX provides the functionality required for a wide range of test and measurement applications.

The LabMaster ADEX is a direct replacement for the LabMaster AD (PGH) with new features such as a smaller physical size and increased resolution A/D and D/A converters (16 bit up from 12 bit).

Features
  • Short size ISA Interface
    • 4" x 8.3" (102mm x 211mm)
  • Complete 100% compatible to LabMaster AD
  • Analog Input A/D Conversion
    • 16-bit resolution
    • 16 expandable to 64 input channels
    • 333,000 sample / second
    • ±10v input
    • Dedicated on-board sample memory
    • Auto-sequence channel / gain array table
  • Analog Input Software Programmable Gain
    • Input gains of 1, 2, 4, 8
    • Annalog Input ranges of ±10, ±5, ±2.5, ±1.25 volts
  • Analog Output D/A Conversion
    • 16-bit resolution
    • 2 output channels
    • 500,000 sample / second
    • ±10v output
    • Dedicated on-board sample memory
  • Digital I/O
    • Dedicated 8 bits output port
    • Dedicated 8 bits input port
    • Expansion for additional 256 output and input ports
  • Timer / Counter
    • 16-bit resolution per timer / counter
    • Five on-board timer / counter
    • Each timer / counter has Source, Gate and Output
    • 9513 counter / timer implementation
  • One high-density external connector
Product Includes LabMaster ADEX ISA card with 60 pin connector, High-density 60 pin cable, CDROM with driver and LabPac Library, Documentation
Manual LabMaster ADEX User's Guide (PDF)
Datasheet LabMaster ADEX Datasheet(PDF)
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
Add to Cart

LabMaster ADEX Software

LabPac for Windows
Image LabPac for Windows CDROM picture
Part Number 821012
Title LabPac Kit-32 for Windows
Overview

LabPac Kit for Windows is a full featured function library that is the Application Programming Interface (API) for all of the Scientific Solutions data acquisition products. The LabPac32 library works with the Scientific Solutions 32-bit, Ring-0, Kernel-Mode Device Drivers to provide a fast, efficient and optimized software program environment.

Simple to use functions handle event counting, precision timing, analog input, analog output, digital input and digital output. LabPac32 is implemented as a standard Dynamic Link Library (DLL) for open compatibility with programming languages and environments.

Features
  • Software Development toolkit for creating your own applications
  • Comes complete with Device Drivers for Scientific Solutions Products
    • WDM Driver supports Win98, Win2K, WinXP, Vista32
    • LabPac32 DLL as the Application Programming Interface (API)
  • Software Developer Example Programs
    • Compiled EXE programs
    • Source Code
    • Header files
  • LabPac API
    • Full Featured Function Dynamic Link Library
    • Develop general or specialized Data Acquisition and Control applications
    • Optimized for speed and flexibility
    • Communicates directly with the 32-bit, Ring-0, Kernel-Mode Device Driver
    • Multi-language support
      • Examples are C, C++, C#, DotNet, Fortran, Pascal, VisualBasic, Java, LabView, etc.
    • Timed interval processes
    • Trigger functions on external events
    • Supports hardware interrupts, DMA and BusMastering
Product Includes LabPac32 for Windows software
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software LabPac32 for Windows Device Drivers and function library
Add to Cart

LabMaster ADEX DeskTop units

DeskTop BNC with 60 Pin Connector
Image Opto IN Module
Part Number 813510
Title DeskTop BNC with 60 Pin Connector
Overview The DeskTop BNC provides convenient industry standard BNC connections for the LabMaster signals in a small compact desktop unit.
Features
  • Small DeskTop unit
  • Front Panel BNC Signal Connections
    • Analog Inputs
    • Analog Outputs
    • Digital I/O
    • Timer / Counter
  • Back Panel Additional Connections
    • 60 Pin Connection for LabMaster
    • Additional Analog Inputs for 64 channels
    • Expansion connections for up to 256 Analog Inputs
  • Single Quick-Connect Connection to LabMaster card
Product Includes DeskTop BNC unit
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

DeskTop BNC Analog Expansion - Ain 16 to Ain 31
Image DeskTop BNC Ai Expansion
Part Number 813511
Title DeskTop BNC Analog In Expansion Channels 16 to 31
Overview The Scientific Solutions DeskTop BNC Analog Input Expansion unit connects to the LabMaster DeskTop BNC and provides BNC connections for additional Analog Input signals. The LabMaster DeskTop BNC has BNC connections for 16 Analog Inputs. By adding the Analog Input Expansion unit to the DeskTop BNC, you can increase the number of Analog Input BNC connections. There are three versions of this unit, one to add channels 16 to 31; another to add channels 32 to 47; and a third unit to add channels 48 to 63. Each unit comes with a cable that connects to your existing DeskTop BNC unit. The Analog Input Expansion units sit on top of the DeskTop BNC unit.
Features
  • Provides BNC connections for additional Analog Inputs
  • Connects directly to your current LabMaster DeskTop BNC unit
  • Three configurations available, each adding an additional 16 Analog Inputs
  • Increases your DeskTop configuration above the 16 standard up to 64 Analog Inputs
  • Small and compact, works with the 60 and 68 Pin versions of the DeskTop BNC
Product Includes DeskTop BNC Ai Expansion Unit along with cable to connect to an existing LabMaster DeskTop BNC
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

DeskTop BNC Analog Expansion - Ain 32 to Ain 47
Image DeskTop BNC Ai Expansion
Part Number 813515
Title DeskTop BNC Analog In Expansion Channels 32 to 47
Overview The Scientific Solutions DeskTop BNC Analog Input Expansion unit connects to the LabMaster DeskTop BNC and provides BNC connections for additional Analog Input signals. The LabMaster DeskTop BNC has BNC connections for 16 Analog Inputs. By adding the Analog Input Expansion unit to the DeskTop BNC, you can increase the number of Analog Input BNC connections. There are three versions of this unit, one to add channels 16 to 31; another to add channels 32 to 47; and a third unit to add channels 48 to 63. Each unit comes with a cable that connects to your existing DeskTop BNC unit. The Analog Input Expansion units sit on top of the DeskTop BNC unit.
Features
  • Provides BNC connections for additional Analog Inputs
  • Connects directly to your current LabMaster DeskTop BNC unit
  • Three configurations available, each adding an additional 16 Analog Inputs
  • Increases your DeskTop configuration above the 16 standard up to 64 Analog Inputs
  • Small and compact, works with the 60 and 68 Pin versions of the DeskTop BNC
Product Includes DeskTop BNC Ai Expansion Unit along with cable to connect to an existing LabMaster DeskTop BNC
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

DeskTop BNC Analog Expansion - Ain 48 to Ain 63
Image DeskTop BNC Ai Expansion
Part Number 813516
Title DeskTop BNC Analog In Expansion Channels 48 to 63
Overview The Scientific Solutions DeskTop BNC Analog Input Expansion unit connects to the LabMaster DeskTop BNC and provides BNC connections for additional Analog Input signals. The LabMaster DeskTop BNC has BNC connections for 16 Analog Inputs. By adding the Analog Input Expansion unit to the DeskTop BNC, you can increase the number of Analog Input BNC connections. There are three versions of this unit, one to add channels 16 to 31; another to add channels 32 to 47; and a third unit to add channels 48 to 63. Each unit comes with a cable that connects to your existing DeskTop BNC unit. The Analog Input Expansion units sit on top of the DeskTop BNC unit.
Features
  • Provides BNC connections for additional Analog Inputs
  • Connects directly to your current LabMaster DeskTop BNC unit
  • Three configurations available, each adding an additional 16 Analog Inputs
  • Increases your DeskTop configuration above the 16 standard up to 64 Analog Inputs
  • Small and compact, works with the 60 and 68 Pin versions of the DeskTop BNC
Product Includes DeskTop BNC Ai Expansion Unit along with cable to connect to an existing LabMaster DeskTop BNC
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

LabMaster SM64 Analog Input Unit with 60 Pin Connector
Image LabMaster SM64 Analog Input Unit
Part Number 813555
Title LabMaster SM64 Analog Input Unit with 60 Pin Connector
Overview The LabMaster SM64 DeskTop unit is used by SandMan and other applications to provide from 16 up to 64 Analog Input Channels. On the front of the unit are four DB25 connectors, each providing 16 Analog Inputs. On the back is a 60 Pin connector for use with the LabMaster AD/ADEX or LabMaster PRO cards that also use the same 60 Pin connector.
Features
  • Small DeskTop unit
  • 64 Analog Input Connections
    • Increases the number of Analog Inputs from 16 to 64
    • Conveniently arranged as 16 Analog Input signals per each of the four DB25
  • 60 Pin Connection for LabMaster AD, ADEX or PRO
Product Includes LabMaster SM64 Unit
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

LabMaster DC8 Analog Input Unit
Image LabMaster DC8 Analog Input Unit
Part Number 813565
Title LabMaster DC8 Analog Input Unit
Overview The LabMaster DC8 Expansion Unit connects to the DeskTop BNC or LabMaster SM64 to provide convenient MiniJack connections to 8 Analog Inputs. The design of the unit is such that each of the Analog Inputs are automatically connected to ground when not in use. Popular with sleep lab applications such as SandMan or where you want to use low-cost 3.5mm (1/8") stereo plugs for your signals.
Features
  • 8 Analog Input connections
  • Convenient 3.5mm (1/8") MiniJack connectors
    • Use low cost stereo cables with standard MiniJack plugs
    • Un-used analog inputs are automatically grounded
  • Easy connection to your existing LabMaster equipment
    • Single DB25 cable to LabMaster SM64 or LabMaster DeskTop BNC unit
    • cable included
  • Poplular for DC signal connections in sleep labs
  • Convenient small size only 2" x 5.25" x 5.25" (51mm x 134mm x 134mm)
Product Includes LabMaster DC8 Unit, 3ft DB25M-DB25F cable
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

LabMaster DC16 Analog Input Unit
Image LabMaster DC16 Analog Input Unit
Part Number 813566
Title LabMaster DC16 Analog Input Unit
Overview The LabMaster DC16 Expansion Unit connects to the DeskTop BNC or LabMaster SM64 to provide convenient MiniJack connections to 16 Analog Inputs. The design of the unit is such that each of the Analog Inputs are automatically connected to ground when not in use. Popular with sleep lab applications such as SandMan or where you want to use low-cost 3.5mm (1/8") stereo plugs for your signals.
Features
  • 16 Analog Input connections
  • Convenient 3.5mm (1/8") MiniJack connectors
    • Use low cost stereo cables with standard MiniJack plugs
    • Un-used analog inputs are automatically grounded
  • Easy connection to your existing LabMaster equipment
    • Single DB25 cable to LabMaster SM64 or LabMaster DeskTop BNC unit
    • cable included
  • Poplular for DC signal connections in sleep labs
  • Convenient small size only 2" x 5.25" x 5.25" (51mm x 134mm x 134mm)
Product Includes LabMaster DC16 Unit, 3ft DB25M-DB25F cable
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

LabMaster DeskTop AIDIO 6416 (60 pin)
Image LabMaster DeskTop AIDIO 6416
Part Number 813572
Title LabMaster DeskTop AIDIO 6416 (60 pin)
Overview

This LabMaster DeskTop unit sukpports 64 Analog Input and 16 Digital I/O signals and connects to the LabMaster AD, ADEX or PRO that use 60 pin connections.

Features
  • Convenient Laboratory grade DeskTop unit
    • 11" wide x 2" tall x 7" deep (280mm x 51mm x 178mm)
  • 64 Analog Inputs available on two DB37 connections
  • Four BNC connections for Analog inputs 0 to 3
  • 16 Digital I/O signals on a single DB25 connection
  • Single 60 pin cable to the LabMaster card
Product Includes LabMaster AIDIO DeskTop unit
Manual Not Available
Datasheet Not Available
Product Specifications Not Available
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

LabMaster Screw Terminals, 16 Analog In, 60 Pin Connector
Image ST56
Part Number 813540
Title LabMaster Screw Terminal, 16 Analog In, 60 Pin Connector
Overview This Screw Termination Unit provides convenient screw terminals for easy and quick discrete wire connection to LabMaster signals. The screw terminal is housed in a small footprint desktop unit. The front of the unit has slots for the disrete wires to enter the unit. The back of the unit has a single connector for a cable connection to the LabMaster.
Features
  • Small DeskTop unit
  • Front Panel slots for signal wires
  • Screw Terminals for:
    • 16 Analog Inputs
    • 2 Anlaog Outputs
    • 24 Digital I/O
    • 9 Counter / Timer signals
    • 5 Control Signals
  • 60 Pin LabMaster Connection
Product Includes LabMaster ST56 Screw Terminal Unit
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

LabMaster DeskTop Screw Terminal, 64 Analog Inputs (60 pin)
Image LabMaster DeskTop Screw Terminal
Part Number 813570
Title LabMaster DeskTop Screw Terminal with 64 Analog Inputs (60 pin)
Overview

This Screw Termination Unit provides a convenient custom screw terminal for easy and quick discrete signal connection in the lab. The screw terminal is housed in a small footprint desktop unit and connects to the LabMaster PC Interface with a single cable.

The front of the desktop unit contains openings for cables to gain access to the internal screw terminals. The back of the unit contains the connector for the LabMaster PC Interface. The unit connects to the LabMaster PC interface using the single high-density shielded cable provided with the LabMaster card.

The Screw Terminal unit is available with either a 60 pin or a 68 pin connection to your LabMaster card. If you have a LabMaster AD or ADEX, then you will want the 60 pin version. If you have a LabMaster PRO, then you will want to be sure and get the version that matches the connection on your LabMaster PRO card.

Features
  • Convenient rugged screw terminals for the LabMaster signals
    • Analog Input (64 signals)
    • Analog Output (2 sigals)
    • Digital I/O (24 signals)
    • Counter / Timer (9 signals)
    • Control (5 signals)
  • Laboratory grade DeskTop enclosure
  • Easy single 60 pin high-density cable connection to the LabMaster card
Product Includes LabMaster Screw Terminal DeskTop unit
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

LabMaster DeskTop Screw Termination - Analog Mux Expansion
Image LabMaster DeskTop Screw Termination - Analog Mux Expansion
Part Number 813542
Title LabMaster DeskTop Screw Termination - Analog Mux Expansion
Overview

This circuit board installs in a LabMaster Screw Termination DeskTop unit and increases the number of Analog Input channels from 16 to 64.

Features
  • Use with Screw Termination units that have only 16 Analog Input channels
  • Circuit board installs inside the existing DeskTop unit
  • Increases Analog Inputs from 16 to 64
  • Includes internal cable to conect to exisiting DeskTop circuit board
Product Includes LabMaster Screw Termination Analog Mux Expansion card, internal ribbon cable
Manual Not Available
Datasheet Not Available
Product Specifications Not Available
Software Win32 Device Drivers with LabPac32 function library
FAQ None
Add to Cart

LabMaster ST/BNC-20 DeskTop Unit (60 pin)
Image LabMaster ST-BNC 20 DeskTop Unit Photo
Part Number 813525
Title LabMaster ST-BNC 20 DeskTop Unit (60 pin)
Overview

This LabMaster ST-BNC 20 DeskTop unit connects to the LabMaster AD, ADEX, or PRO using a 60 pin connector (Not 68).

The DeskTop ST-BNC 20 provides convenient industry standard BNC connections for 20 of the LabMaster signals in a small compact desktop unit.

Internally, each BNC connector has two wires - one for signal, and the other for ground. Also inside the unit is a full custom screw terminal that has "ALL" of the LabMaster signals. This unit provides the user with the ability to "customize" the front panel connections. Many applications don't need all of the signals that the LabMaster can handle. The DeskTop ST-BNC 20 was created for those applications that just need a few of the signals (up to 20).

Features
  • Convenient Sized DeskTop Unit
    • 11" wide x 2" high x 7" deep (280mmx 51mm x 178mm)
  • Provides 20 BNC connections on the front
  • Internal screw terminal with all 48 LabMaster signals
  • Easy connection from the screw terminal to the BNC connectors
    • Lets you choose the signals you want!
    • Includes set of peel-and-stick labels to identify the BNC connections
  • Single Cable connection back to the LabMaster computer interface
Product Includes LabMaster ST-BNC DeskTop Unit
Manual LabMaster ST-BNC 20 User's Guide
Datasheet LabMaster ST-BNC 20 Datasheet(PDF)
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
Add to Cart

LabMaster ADEX Accessories

Cable, 60 Pin High-Density, 1.5m
Image 60 Pin High Density Cable
Part Number 942543
Title Cable, 60 Pin High-Density, 1.5m
Overview Cable harness that is 1.5 meter in length (4.9 ft.) and is terminated on each end with a 60 Pin High-Density connector.
Features
  • High-Density DDK 60 pin connector
    • Connects to LabMaster products with mating connector
    • Many signals thru a physically small connector
  • Polarized connector eliminates erros and protects equipment
  • Latch connectors creates strong connection without bulky thumb-screws
  • 4.9 foot length (1.5 meter)
  • Cable material provides electrical shielding, yet flexible easy to bend and move
Product Includes Cable harness with 60 Pin High-Density connector on each end
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Cable, 60 Pin High-Density, 3.0m
Image 60 Pin High Density Cable
Part Number 942544
Title Cable, 60 Pin High-Density, 3.0m
Overview Cable harness that is 3.0 meter in length (9.8 ft.) and is terminated on each end with a 60 Pin High-Density connector.
Features
  • High-Density DDK 60 pin connector
    • Connects to LabMaster products with mating connector
    • Many signals thru a physically small connector
  • Polarized connector eliminates erros and protects equipment
  • Latch connectors creates strong connection without bulky thumb-screws
  • 9.8 foot length (3.0 meter)
  • Cable material provides electrical shielding, yet flexible easy to bend and move
Product Includes Cable harness with 60 Pin High-Density connector on each end
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart
