LabTender ® Data Acquisition Products

LabTender / ISA Photo

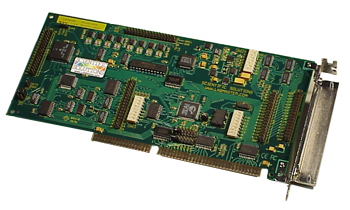

Scientific Solutions LabTender / ISA card

Four key data acquisition and control functions (on one PC board) are included in a high performance, cost effective package.

The LabTender was first introduced in 1981. It has been available and supported continuously ever since, and is used in many diverse applications including laboratory testing, entertainment/training flight simulators, and factory automation.

The newest version of the LabTender expands the original features - increasing the D/A and A/D data from 8 bit to 16 bit, increasing the sink/source current of the Digital I/O, and reducing the physical size to fit in slim computers.

Great care is taken in the design and manufacturing of the LabTender to insure a quality product that provides accuracy and stability for demanding applications. Its feature-full rugged design and reliability make it ideal for acquiring and analyzing data in industrial, scientific, and educational fields.

Note: The LabTender uses switch settings to configure the Base Address of the card. Normally, it is shipped from Scientific Solutions with a base address setting of 0330h. Some applications may require a different address. You will need to consult the manual with the software you are using.


LabTender /ISA Products

LabTender / ISA
Image LabTender / ISA Product Photo
Part Number LabTender is available in two versions:
020028 - Version with a Counter / Timer
020128 - Version Without a Counter / Timer
Title LabTender / ISA
Overview

Four key data acquisition and control functions are included in a high performance, very cost competitive package. 32 single-ended or 16 differential Analog Input channels, 16 Analog output channels, five 16-bit precision timer/counters, and 24 lines of TTL compatible digital I/O complete this multipurpose data acquisition and control product.

We offer two versions of the LabTender; one with the Counter / Timer feature and another without. Some applications, such as motion control simulation do not use the counter/timer and so these applications would use the version without this feature. If you are unsure if you need this feature or not, look at the Full Description and Specifications and there is a section that helps you to determine what you need.

Features
  • Medium size ISA Interface
    • 4" x 8.75" (102mm x 222mm)
    • Supports 8/16 bit ISA bus
  • 32 channels of 16 bit ADC data
    • Analog Input range ±5v
  • 16 channels of 16 bit DAC data
    • Analog Output range ±5v
  • 24 bit Digital I/O with over-voltage protection
  • Five, 16 bit On-board Timer / Counters (only 020028 version)
  • 100% register level compatible with original 1981 LabTender
Product Includes LabTender ISA card for the computer, CDROM with driver and LabPac Library and documentation.
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
Add to Cart

LabTender / ISA Software

LabPac for Windows
Image LabPac for Windows CDROM picture
Part Number 821012
Title LabPac Kit-32 for Windows
Overview

LabPac Kit for Windows is a full featured function library that is the Application Programming Interface (API) for all of the Scientific Solutions data acquisition products. The LabPac32 library works with the Scientific Solutions 32-bit, Ring-0, Kernel-Mode Device Drivers to provide a fast, efficient and optimized software program environment.

Simple to use functions handle event counting, precision timing, analog input, analog output, digital input and digital output. LabPac32 is implemented as a standard Dynamic Link Library (DLL) for open compatibility with programming languages and environments.

Features
  • Software Development toolkit for creating your own applications
  • Comes complete with Device Drivers for Scientific Solutions Products
    • WDM Driver supports Win98, Win2K, WinXP, Vista32
    • LabPac32 DLL as the Application Programming Interface (API)
  • Software Developer Example Programs
    • Compiled EXE programs
    • Source Code
    • Header files
  • LabPac API
    • Full Featured Function Dynamic Link Library
    • Develop general or specialized Data Acquisition and Control applications
    • Optimized for speed and flexibility
    • Communicates directly with the 32-bit, Ring-0, Kernel-Mode Device Driver
    • Multi-language support
      • Examples are C, C++, C#, DotNet, Fortran, Pascal, VisualBasic, Java, LabView, etc.
    • Timed interval processes
    • Trigger functions on external events
    • Supports hardware interrupts, DMA and BusMastering
Product Includes LabPac32 for Windows software
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software LabPac32 for Windows Device Drivers and function library
Add to Cart

LabPac for DOS
Image LabPac for DOS CDROM picture
Part Number 811898
Title LabPac for DOS
Overview LabPac for DOS is a sophisticated memory resident driver. It provides DOS applications with a complete data acquisition library that includes functions to handle event counting, precision timing, analog input, analog output, digital input and digital output. LabPac installs as a BIOS-level software interrupt, allowing any language that runs under DOS access to its various functions. Introduced in 1981 for the PC, it is available to support our long-time customers who continue to use DOS based products.
Features
  • DOS Installable Device Driver and Function Library
    • Device Drivers to virtualize physical hardware
    • Library provides wealth of easy-to-use functions
  • Optimized for speed and flexibility
  • Continued support for numerous Scientific Solutions Products:
    • BaseBoard (ISA and PCI)
    • DADIO
    • LabTender
    • LabMaster DMA
    • LabMaster DPCI
  • BIOS-Level Memory Resident Driver with Multi-Language support
    • Callable from any DOS programming language
  • Timed Interval processes
  • Data files in binary or ASCII format
  • World's first Data Acqusition programming environment for the pc
Product Includes LabPac for DOS software
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software LabPac for DOS Device Driver and function library
Add to Cart

LabTender / ISA Accessories

Bracket Assembly for Ribbon Cables
Image Bracket Assembly for Ribbon Cables
Part Number 938232 - Complete Bracket Assembly

Assembly consists of the following parts
938212 - Bracket, board retaining
938231 - Bracket, cable clamp
938230 - Bracket, strain relief clamp
Title Bracket Assembly for Ribbon Cables
Overview This is the Bracket Assembly that is used on the BaseBoard / ISA, LabMaster DMA and LabTender / ISA products. The Bracket Assembly is mounted on these boards and secures the boards inside of the computer, provides for several ribbon cables to connect to the board and exit the back of the computer, and clamps the ribbon cables to provide shielding and also strain relief. Although we use this bracket on our own products, others have also purchased this bracket to use of their products.
Features
  • High quality Steel construction
  • Chrome finish
  • Provides the following functions:
    1. Secures the circuit board inside the computer
    2. Allows multiple ribbon cables to exit the computer
    3. Provides electrical shielding
    4. Provides very secure strain-relief of the ribbon cables
Product Includes Bracket Assembly
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Cable, 37 Conductor Ribbon terminated one end with socket header
Image 34 Conductor Ribbon Cable, one-end terminated
Part Number cb334004
Title Cable, 37 Conductor Ribbon terminated with 37 position header on one end
Overview 37 conductor flat ribbon cable, 6 foot in length (1.8 meter) and terminated on one end with a 37 position header socket connector while the other end is left un-terminated. This cable is typically used to connect from the LabTender on-board headers to external equipment. The un-terimanted end allows the user to attach their own connector.
Features
  • High quality ribbon cable
  • 37 conductors
  • Colored stripe to indicate pin 1 location
  • 6 foot length (1.8 meter)
  • Cable Termination:
    • One end unterminated
    • Other end has a 37 position socket header
Product Includes 37 conductor flat ribbon cable with one end terminated
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart
