40 Position Screw Terminal

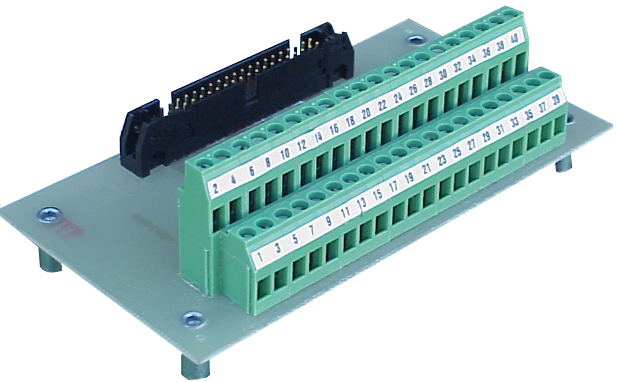

![Screw Terminal ST40](images/st40.jpg)
Scientific Solutions 40 Position Screw Terminal
To interface equipment using a 40 position pin header connector to discrete signals, Scientific Solutions has the 40 Position Screw Terminal.
The compact 40-position unit (3" x 5" x 2-1/2") has a double rack of clamp style screw terminals for easy attachment of discrete wires. There is a screw associated with each clamp location. You loosen the screw, insert the wire, and then tighten the screw to make a good connection between the discrete wire and the clamp
The unit also contains a 40 pin header, consisting of two rows of 20 pins at 1/10" spacing between pins. This is a shrouded connector and keyed. A 40 conductor flat ribbon cable is normally connected between the Screw Terminal Unit's 40 pin header and a likewise 40 pin header on the other equipment
A 40 conductor, 6 foot (1.8m) flat ribbon cable terminated with 40 position socket headers on each end is also provided with the Screw Terminal Unit.
Scientific Solutions 40 conductor Flat Ribbon Cable
