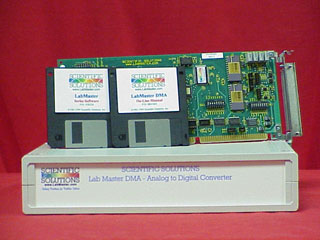

Scientific Solutions LabMaster DMA / ISA card with DeskTop Unit

Best In Test LogoOnly products to receive Test and Measurement World's "Product of the Decade"


The LabMaster DMA is the Longest selling and supported PC-based data acquisition product in the world!
First introduced in 1981, the LabMaster DMA products created the PC data acquisition market and were the world's first add in products of any type for the IBM PC.
Awarded Test Product of the Decade in 1991 by Test & Measurement world as recognition of its pioneering status in the industry. With updates and enhancements throughout the years, todays version of the LabMaster products provide current technology while maintaining 100% compatibility with the original.

LabMaster DMA products use an External ADC for Ultra Quiet Measurements!

The multi functional LabMaster DMA products are implemented in a unique two piece design that results in exceptional ultra-low noise measurements.

The product implements the following functions:

Used in such diverse applications such as Voltage Clamp (pCLamp); EEG/EKG Neurological measurements; Industrial Process Control; Laboratory Instrumentation Test, Measurement and Control; Gravitational Meters; and Fluorescence Research Instrumentation; - the LabMaster DMA products are available in several models of A/D Resolution, A/D Speed, Amplifier Gain, Digital I/O buffering methods, and external connection options.

The LabMaster DMA products consist of two boards:

  1. The LabMaster PC Interface which installs in the computer
  2. The LabMaster External Analog-to-Digital board which is outside of the computer

These two boards are connected with a cable. Some configurations use a flat ribbon cable that is fed thru the bracket on the LabMaster PC Interface, while other configurations use a quick-connect round cable that is much easier to install. The External Analog-to-Digital board can be housed in a number of different enclosures, and is even offered without an enclosure for special OEM configurations.

The products on this page are organized in according to the type external enclosure used:

Customers using the LabMaster DMA / ISA products may also be interested in the LabMaster DPCI offerings. The LabMaster DPCI is a PCI version of the LabMaster DMA. In most cases, software written for the LabMaster DMA / ISA card can be run on the LabMaster DPCI product without any modification required.

Contact Scientific Solutions regarding the PCI version to replace your existing ISA product!

LabMaster DMA without enclosure

LabMaster DMA without Enclosure
Image LabMaster DPCI Ribbon Cable Unit
Part Number Following products have 12-bit 50Khz ADC with Gain options as shown:
814130 (ADC: 12-bit 50Khz, Gain=HGE)
814131 (ADC: 12-bit 50Khz, Gain=PGH)
814132 (ADC: 12-bit 50Khz, Gain=PGL)

Following products have 12-bit 160Khz ADC with Gain options as shown:
814133 (ADC: 12-bit 160Khz, Gain=HGE)
814134 (ADC: 12-bit 160Khz, Gain=PGH)
814135 (ADC: 12-bit 160Khz, Gain=PGL)
Title LabMaster DMA without Enclosure
Overview

The LabMaster DMA product configurations in this section come without an enclosure for the External LabMaster DMA ADC. This configuration is for those applications where the external unit is embedded in some other equipment. Most end users do not get this version as generally an external enclosure is preferable. This version is more popular with OEM (Original Equipment Manufacturers) customers who manufacture their own equipment that use the LabMaster DMA products.
Features
  • ISA card for inside the computer
  • External card with A/D circuitry
    • 50 pin header for connection to the LabMaster DMA computer interface
    • 40 pin header for connection of Analog Input signals
  • You choose ADC speed you need
    • Choices are 50Khz or 160Khz
  • You choose Gain options you need
    • Choices are:
      • HGE, Hardware Gain of 1 (can change to any gain)
      • PGH, Software Programmable gain of 1, 2, 4, 8
      • PGL, Software Programmable gain of 1, 10, 100
Product Includes LabMaster DMA computer card, External ADC card, 50 pin shielded cable to connect between computer card and DeskTop unit, CDROM with driver and LabPac Library and User's Guide
Manual LabMaster DMA User's Guide
Datasheet LabMaster DMA without Enclosure(PDF)
Product Specifications External ADC card Full Description and Specifications

LabMaster DMA Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
Add to Cart

LabMaster DMA with Ribbon Cable DeskTop Unit

LabMaster DMA with Ribbon Cable DeskTop Unit
Image LabMaster DPCI Ribbon Cable Unit
Part Number Following products have 12-bit 50Khz ADC with Gain options as shown:
814120 (ADC: 12-bit 50Khz, Gain=HGE)
814121 (ADC: 12-bit 50Khz, Gain=PGH)
814122 (ADC: 12-bit 50Khz, Gain=PGL)

Following products have 12-bit 160Khz ADC with Gain options as shown:
814123 (ADC: 12-bit 160Khz, Gain=HGE)
814124 (ADC: 12-bit 160Khz, Gain=PGH)
814125 (ADC: 12-bit 160Khz, Gain=PGL)

Following products have 16-bit 160Khz ADC with Gain options as shown:
815120 (ADC: 16-bit 160Khz, Gain=HGE)
815121 (ADC: 16-bit 160Khz, Gain=PGH)
815122 (ADC: 16-bit 160Khz, Gain=PGL)
Title LabMaster DMA with Ribbon Cable DeskTop Unit
Overview

The LabMaster DMA with Ribbon Cable DeskTop Unit are versions of the LabMaster DMA with a DeskTop unit that uses Ribbon Cable Connections for both the connection to the computer and for the Analog Inputs.
Features
  • ISA card for inside the computer
  • DeskTop unit with Ribbon Cable Connections
    • 50 pin for connection to the LabMaster DMA computer interface
    • 40 pin for connection of Analog Input signals
  • You choose ADC speed you need
    • Choices are 50Khz or 160Khz
  • You choose Gain options you need
    • Choices are:
      • HGE, Hardware Gain of 1 (can change to any gain)
      • PGH, Software Programmable gain of 1, 2, 4, 8
      • PGL, Software Programmable gain of 1, 10, 100
Product Includes LabMaster DMA computer card, Ribbon Cable DeskTop Unit, 50 pin shielded cable to connect between computer card and DeskTop unit, CDROM with driver and LabPac Library and User's Guide
Manual LabMaster DMA User's Guide
Datasheet LabMaster DMA with Ribbon Cable DeskTop Unit Datasheet(PDF)
Product Specifications Ribbon Cable DeskTop Unit Full Description and Specifications

LabMaster DMA Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
Add to Cart

LabMaster DMA with Screw Terminal DeskTop Unit

LabMaster DMA with Screw Terminal DeskTop Unit
Image LabMaster DMA Screw Terminal Unit LabMaster DMA Screw Terminal Unit
Part Number Following products have 12-bit 50Khz ADC with Gain options as shown:
814100 (ADC: 12-bit 50Khz, Gain=HGE)
814111 (ADC: 12-bit 50Khz, Gain=PGH)
814102 (ADC: 12-bit 50Khz, Gain=PGL)

Following products have 12-bit 160Khz ADC with Gain options as shown:
814103 (ADC: 12-bit 160Khz, Gain=HGE)
814104 (ADC: 12-bit 160Khz, Gain=PGH)
814105 (ADC: 12-bit 160Khz, Gain=PGL)
Title LabMaster DMA with Screw Terminal DeskTop Unit
Overview

The LabMaster DMA product configurations in this section come with a DeskTop Screw Terminal unit. This unit has all of the LabMaster DMA signals available as convenient Screw Terminal connectors inside the DeskTop Unit. The connection from the PC Interface to the DeskTop unit is by quick-connector round cables - making it easy to connect with no need to feed cables thru the back of the card inside the computer..
Features
  • ISA card for inside the computer
  • DeskTop unit with Internal Screw Terminal Connections
    • Convennient DeskTop size
      • 11" wide x 7" deep x 2" high (280mm x 178mm x 51mm)
    • Screw Terminal Connnections
      • 16 Analog Input
      • 2 Analog Output
      • 24 Digital I/O as Port A, B, C
      • 16 Counter /Timer (5-Gate, 5-Out, 5-Source, Fout)
      • Start-of-Conversion
      • End-of-Connversion
      • +5 volts
  • Easy connection from DeskTop to LabMaster DMA in the computer using Round Quick-connect cables
  • You choose ADC speed you need
    • Choices are 50Khz or 160Khz
  • You choose Gain options you need
    • Choices are:
      • HGE, Hardware Gain of 1 (can change to any gain)
      • PGH, Software Programmable gain of 1, 2, 4, 8
      • PGL, Software Programmable gain of 1, 10, 100
Product Includes LabMaster DMA computer card, Screw Terminal DeskTop Unit, Round cables to connect between computer card and DeskTop unit, CDROM with driver and LabPac Library and User's Guide
Manual LabMaster DMA User's Guide
Datasheet LabMaster DMA with Screw Terminal DeskTop Unit Datasheet(PDF)
Product Specifications Screw Terminal DeskTop Unit Full Description and Specifications

LabMaster DMA Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
Add to Cart

LabMaster DMA with Minijack DeskTop Unit

LabMaster DMA with MiniJack DeskTop Unit
Image LabMaster DMA BNC DeskTop Unit
Part Number Following products have 12-bit 50Khz ADC with Gain options as shown:
813604 (ADC: 12-bit 50Khz, Gain=HGE)
813605 (ADC: 12-bit 50Khz, Gain=PGH)
813606 (ADC: 12-bit 50Khz, Gain=PGL)

Following products have 12-bit 160Khz ADC with Gain options as shown:
814200 (ADC: 12-bit 160Khz, Gain=HGE)
814201 (ADC: 12-bit 160Khz, Gain=PGH)
814202 (ADC: 12-bit 160Khz, Gain=PGL)
Title LabMaster DMA with MiniJack DeskTop Unit
Overview

The LabMaster DMA product configurations in this table come with a DeskTop MiniJack Unit. This unit has the most popular LabMaster DMA signals available as MiniJack (sometimes called 3.5mm, 1/8, or stereo headphone) connectors on a convenient DeskTop Unit. The cable from the PC Interface to the DeskTop unit is by quick-connector round cables - making it easy to connect with no need to feed cables thru the back of the card. In addition to the pre-wired MiniJack signals, there are also two "User Definable" MiniJacks on the DeskTop Unit that the user can connect to any desired signals.
Features
  • ISA card for inside the computer
  • DeskTop unit with MiniJack Connections
    • Convennient DeskTop size
      • 11" wide x 7" deep x 2" high (280mm x 178mm x 51mm)
    • Convenient Minijack Connections
      • 16 Analog Input
      • 2 Analog Output
      • 16 Digital I/O as Port A and B
      • 2 User Definable
    • Easy connection from DeskTop to LabMaster DMA in the computer using Round Quick-connect cables
    • You choose ADC speed you need
      • Choices are 50Khz or 160Khz
    • You choose Gain options you need
      • Choices are:
        • HGE, Hardware Gain of 1 (can change to any gain)
        • PGH, Software Programmable gain of 1, 2, 4, 8
        • PGL, Software Programmable gain of 1, 10, 100
Product Includes LabMaster DMA computer card, MiniJack DeskTop Unit, Round cables to connect between computer card and DeskTop unit, CDROM with driver and LabPac Library and User's Guide
Manual LabMaster DMA User's Guide
Datasheet LabMaster DMA with MiniJack DeskTop Unit Datasheet(PDF)
Product Specifications MiniJack DeskTop Unit Full Description and Specifications

LabMaster DMA Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
Add to Cart

LabMaster DMA with BNC DeskTop Unit

LabMaster DMA with BNC DeskTop Unit
Image LabMaster DMA BNC DeskTop Unit
Part Number Following products have 12-bit 50Khz ADC with Gain options as shown:
813610 (ADC: 12-bit 50Khz, Gain=HGE)
813611 (ADC: 12-bit 50Khz, Gain=PGH)
813612 (ADC: 12-bit 50Khz, Gain=PGL)

Following products have 12-bit 160Khz ADC with Gain options as shown:
813623 (ADC: 12-bit 160Khz, Gain=HGE)
813624 (ADC: 12-bit 160Khz, Gain=PGH)
813625 (ADC: 12-bit 160Khz, Gain=PGL)
Title LabMaster DMA with BNC DeskTop Unit
Overview

The LabMaster DMA product configurations in this section come with a DeskTop BNC unit. This unit has all of the LabMaster DMA signals available as BNC connectors on a convenient DeskTop Unit. The cable from the PC Interface to the DeskTop unit is by quick-connector round cables - making it easy to connect with no need to feed cables thru the back of the card.
Features
  • ISA card for inside the computer
  • DeskTop unit with BNC Connections
    • Convennient DeskTop size
      • 11" wide x 7" deep x 2" high (280mm x 178mm x 51mm)
    • Standard BNC Connections
      • 16 Analog Input
      • 2 Analog Output
      • 24 Digital I/O as Port A, B, C
      • 16 Counter /Timer (5-Gate, 5-Out, 5-Source, Fout)
      • Start-of-Conversion
      • End-of-Connversion
      • +5 volts
  • Easy connection from DeskTop to LabMaster DMA in the computer using Round Quick-connect cables
  • You choose ADC speed you need
    • Choices are 50Khz or 160Khz
  • You choose Gain options you need
    • Choices are:
      • HGE, Hardware Gain of 1 (can change to any gain)
      • PGH, Software Programmable gain of 1, 2, 4, 8
      • PGL, Software Programmable gain of 1, 10, 100
Product Includes LabMaster DMA computer card, DeskTop BNC Unit, Round cables to connect between computer card and DeskTop unit, CDROM with driver and LabPac Library and User's Guide
Manual LabMaster DMA User's Guide
Datasheet LabMaster DMA with DeskTop BNC Unit Datasheet(PDF)
Product Specifications DeskTop BNC Unit Full Description and Specifications

LabMaster DMA Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
Add to Cart

LabMaster DMA Software

LabPac for Windows
Image LabPac for Windows CDROM picture
Part Number 821012
Title LabPac Kit-32 for Windows
Overview

LabPac Kit for Windows is a full featured function library that is the Application Programming Interface (API) for all of the Scientific Solutions data acquisition products. The LabPac32 library works with the Scientific Solutions 32-bit, Ring-0, Kernel-Mode Device Drivers to provide a fast, efficient and optimized software program environment.

Simple to use functions handle event counting, precision timing, analog input, analog output, digital input and digital output. LabPac32 is implemented as a standard Dynamic Link Library (DLL) for open compatibility with programming languages and environments.
Features
  • Software Development toolkit for creating your own applications
  • Comes complete with Device Drivers for Scientific Solutions Products
    • WDM Driver supports Win98, Win2K, WinXP, Vista32
    • LabPac32 DLL as the Application Programming Interface (API)
  • Software Developer Example Programs
    • Compiled EXE programs
    • Source Code
    • Header files
  • LabPac API
    • Full Featured Function Dynamic Link Library
    • Develop general or specialized Data Acquisition and Control applications
    • Optimized for speed and flexibility
    • Communicates directly with the 32-bit, Ring-0, Kernel-Mode Device Driver
    • Multi-language support
      • Examples are C, C++, C#, DotNet, Fortran, Pascal, VisualBasic, Java, LabView, etc.
    • Timed interval processes
    • Trigger functions on external events
    • Supports hardware interrupts, DMA and BusMastering
Product Includes LabPac32 for Windows software
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software LabPac32 for Windows Device Drivers and function library
Add to Cart

LabPac for DOS
Image LabPac for DOS CDROM picture
Part Number 811898
Title LabPac for DOS
Overview LabPac for DOS is a sophisticated memory resident driver. It provides DOS applications with a complete data acquisition library that includes functions to handle event counting, precision timing, analog input, analog output, digital input and digital output. LabPac installs as a BIOS-level software interrupt, allowing any language that runs under DOS access to its various functions. Introduced in 1981 for the PC, it is available to support our long-time customers who continue to use DOS based products.
Features
  • DOS Installable Device Driver and Function Library
    • Device Drivers to virtualize physical hardware
    • Library provides wealth of easy-to-use functions
  • Optimized for speed and flexibility
  • Continued support for numerous Scientific Solutions Products:
    • BaseBoard (ISA and PCI)
    • DADIO
    • LabTender
    • LabMaster DMA
    • LabMaster DPCI
  • BIOS-Level Memory Resident Driver with Multi-Language support
    • Callable from any DOS programming language
  • Timed Interval processes
  • Data files in binary or ASCII format
  • World's first Data Acqusition programming environment for the pc
Product Includes LabPac for DOS software
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software LabPac for DOS Device Driver and function library
Add to Cart

LabMaster DMA Product Accessories

LabMaster DMA: Computer card only
Image LabMaster DMA / ISA card only
Part Number 811990
Title LabMaster DMA: Computer card only
Overview

This part number is for the LabMaster DMA computer card only. This multifunction card features Digital-to-Analog conversion, Digital I/O and Counter / Timer functions. Analog-to-Digital conversion is obtained when connecting this card to one of the LabMaster DMA DeskTop units. However, the card can be used stand-alone without the ADC feature
Features
  • LabMaster DMA computer interface
    • measures 4" x 8" (102mm x 204mm)
  • Analog-to-Digital Conversion
    • Two Analog Output channels
    • Both voltage output and 4-20ma Current loop output
    • Multiple Output ranges
      • ±10v, ±5v, ±2.5v
      • 0 to +10v, 0 to +5v
    • 12 bit resolution, 200Khz update rate
  • Digital I/O
    • 24 bits with 8255 register set
    • Sockets for Buffer devices
    • Full 8255 Mode 0, 1 and 2
    • 26 pin and 50 pin header for Solid-State Relays
  • Counter / Timer
    • Full 9513 Register set
    • Five 16-bit Timer / Counters
    • 6.25Mhz event countig
    • Provides precsise A/D sample clocking
  • Single slot solution with special ribbon cable bracket
  • Same register set as original 1981 version to run all of your LabMaster software
Product Includes
  • LabMaster DMA Computer Interface Card
  • CDROM with sofware and documentation
Manual LabMaster DMA User's Guide
Datasheet LabMaster DMA card Datasheet(PDF)
Product Specifications Full Description and Specifications
Software Win32 Device Drivers with LabPac32 function library
Add to Cart

Cable, 50 Conductor Shielded Ribbon
Image 50 Conductor Shielded Ribbon Cable
Part Number This cable is available in the following lengths:
938298 - 6 ft. (1.8 m)
938299 - 10 ft. (18 m)
938300 - 50 ft. (90 m)
Title Cable, 50 Conductor Shielded Ribbon
Overview 50 conductor flat shielded ribbon cable, 6 foot in length (1.8 meter) and terminated on each end with a 50 position header socket connector. This shielded ribbon cable is typically used to connect from the LabMaster DMA computer interface to the external LabMaster DMA DeskTop unit or external A/D card.
Features
  • High quality ribbon cable
  • 50 conductors
  • Shielded
  • Colored stripe to indicate pin 1 location
  • 6 foot length (1.8 meter) standard, 10 ft. and 50 ft. special order
  • Terminated each end with a 50 position header socket connector
Product Includes 50 conductor flat shielded ribbon cable with attached 50 position header connectors
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Screw Terminal, 10 Position
Image 10 position Screw Terminal
Part Number 811970
Title Screw Terminal, 10 Position
Overview Convenient compact double row clamp style screw terminals makes it easy to connect discrete wires to signals located on 10 pin header connectors. Includes ribbon cable to connect the Screw Terminal Unit to the header connection of your other equipment.
Features
  • Provides Convenient Screw Terminals
  • For connection to 10 pin headers
  • Includes 10 conductor flat ribbon cable
    • 6 ft. (1.8m) length
    • Each end terminated with 10 position socket header
Product Includes 26 position Screw Terminal, 6ft length 10 conductor flat ribbon cable
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Screw Terminal, 26 Position
Image 26 position Screw Terminal
Part Number 811972
Title Screw Terminal, 26 Position
Overview Convenient compact double row clamp style screw terminals makes it easy to connect discrete wires to signals located on 26 pin header connectors. Includes ribbon cable to connect the Screw Terminal Unit to the header connection of your other equipment.
Features
  • Provides Convenient Screw Terminals
  • For connection to 26 pin headers
  • Includes 26 conductor flat ribbon cable
    • 6 ft. (1.8m) length
    • Each end terminated with 26 position socket header
Product Includes 26 position Screw Terminal, 6ft length 26 conductor flat ribbon cable
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Screw Terminal, 40 Position
Image 40 position Screw Terminal
Part Number 811973
Title Screw Terminal, 40 Position
Overview Convenient compact double row clamp style screw terminals makes it easy to connect discrete wires to signals located on 40 pin header connectors. Includes ribbon cable to connect the Screw Terminal Unit to the header connection of your other equipment.
Features
  • Provides Convenient Screw Terminals
  • For connection to 40 pin headers
  • Includes 40 conductor flat ribbon cable
    • 6 ft. (1.8m) length
    • Each end terminated with 40 position socket header
Product Includes 40 position Screw Terminal, 6ft length 40 conductor flat ribbon cable
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Screw Terminal, 50 Position
Image 50 position Screw Terminal
Part Number 811974
Title Screw Terminal, 50 Position
Overview Convenient compact double row clamp style screw terminals makes it easy to connect discrete wires to signals located on 50 pin header connectors. Includes ribbon cable to connect the Screw Terminal Unit to the header connection of your other equipment.
Features
  • Provides Convenient Screw Terminals
  • For connection to 50 pin headers
  • Includes 50 conductor flat ribbon cable
    • 6 ft. (1.8m) length
    • Each end terminated with 50 position socket header
Product Includes 50 position Screw Terminal, 6ft length 50 conductor flat ribbon cable
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Cable, 50 conductor ribbon, 6 ft (1.8m)
Image 50 Conductor Ribbon Cable
Part Number 943265
Title Cable, 50 conductor ribbon, 6ft (1.8m)
Overview 50 conductor flat ribbon cable, 6 foot in length (1.8 meter) and terminated on each end with a 50 position header socket connector.
Features
  • High quality ribbon cable
  • 50 conductors
  • Colored stripe to indicate pin 1 location
  • 6 foot length (1.8 meter)
  • Terminated each end with a 50 position header socket connector
Product Includes 50 conductor flat ribbon cable with attached 50 position header connectors
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Cable, 40 conductor ribbon, 6 ft (1.8m)
Image 40 Conductor Ribbon Cable
Part Number 938605
Title Cable, 40 conductor ribbon, 6ft (1.8m)
Overview 40 conductor flat ribbon cable, 6 foot in length (1.8 meter) and terminated on each end with a 40 position header socket connector.
Features
  • High quality ribbon cable
  • 40 conductors
  • Colored stripe to indicate pin 1 location
  • 6 foot length (1.8 meter)
  • Terminated each end with a 40 position header socket connector
Product Includes 40 conductor flat ribbon cable with attached 40 position header connectors
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Cable, 26 conductor ribbon, 6 ft (1.8m)
Image 26 Conductor Ribbon Cable
Part Number 361036
Title Cable, 26 conductor ribbon, 6ft (1.8m)
Overview 26 conductor flat ribbon cable, 6 foot in length (1.8 meter) and terminated on each end with a 26 position header socket connector.
Features
  • High quality ribbon cable
  • 26 conductors
  • Colored stripe to indicate pin 1 location
  • 6 foot length (1.8 meter)
  • Terminated each end with a 26 position header socket connector
Product Includes 26 conductor flat ribbon cable with attached 26 position header connectors
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Cable, 10 conductor ribbon, 6 ft (1.8m)
Image 10 Conductor Ribbon Cable
Part Number 938602
Title Cable, 10 conductor ribbon, 6ft (1.8m)
Overview 10 conductor flat ribbon cable, 6 foot in length (1.8 meter) and terminated on each end with a 10 position header socket connector.
Features
  • High quality ribbon cable
  • 10 conductors
  • Colored stripe to indicate pin 1 location
  • 6 foot length (1.8 meter)
  • Terminated each end with a 10 position header socket connector
Product Includes 10 conductor flat ribbon cable with attached 10 position header connectors
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Bracket Assembly for Ribbon Cables
Image Bracket Assembly for Ribbon Cables
Part Number 938232 - Complete Bracket Assembly

Assembly consists of the following parts
938212 - Bracket, board retaining
938231 - Bracket, cable clamp
938230 - Bracket, strain relief clamp
Title Bracket Assembly for Ribbon Cables
Overview This is the Bracket Assembly that is used on the BaseBoard / ISA, LabMaster DMA and LabTender / ISA products. The Bracket Assembly is mounted on these boards and secures the boards inside of the computer, provides for several ribbon cables to connect to the board and exit the back of the computer, and clamps the ribbon cables to provide shielding and also strain relief. Although we use this bracket on our own products, others have also purchased this bracket to use of their products.
Features
  • High quality Steel construction
  • Chrome finish
  • Provides the following functions:
    1. Secures the circuit board inside the computer
    2. Allows multiple ribbon cables to exit the computer
    3. Provides electrical shielding
    4. Provides very secure strain-relief of the ribbon cables
Product Includes Bracket Assembly
Manual Not Available
Datasheet Not Available
Product Specifications Full Description and Specifications
Software Not Applicable
FAQ None
Add to Cart

Specifications subject to change without notice.

Scientific Solutions liability, trademarks, and export notices apply.

Copyright © 1972-2021 Scientific Solutions - All rights reserved.

Valid XHTML 1.0 Strict
