Solvent Extract Solution for Omega Meter Contamination Measurement System
![Solvent Extract Bottle](0301196_75i_1-liter_bottle_410.png)

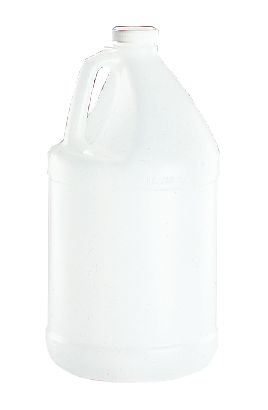

Picture shows a 1 Liter Bottle of the Solvent Extract
Description
The OmegaMeter uses a wash solution of 75% by volume of ACS reagent grade isopropyl alcohol (IPA) and 25% by volume of deionized distilled water.
This "wash" solution is also referred to as the "Test Solvent" or "Extract Solvent" as its purpose is to wash off, or extract contaminates from a circuit board.
You initially fill your ionic test equipment with this Test Solvent.
The solution concentration in the equipment (Alcohol/Water Ratio) may eventually change due to evaporation and the level may drop due to drag on the tested assemblies.
You will use 99% IPA and pure deionized water to adjust the concentration when necessary to bring it back into compliance. The ionic test equipment generally has a menu-prompted procedure to accomplish this.
Once the concentration is brought back to the 75%/25% compliant level, then use this pre-mixed Test Solvent to bring the level of fluid to the full mark.
Material Safety Data Sheet (MSDS) for the Solvent Extract Solution (pdf)
Amount in bottle | 1 Liter |
---|---|
Amount used per OmegaMeter | 30 - 42 liters (8 - 11 gallons), depending upon test cell size |
Solution Ratio | 75% IPA - 25% D-H2O |
